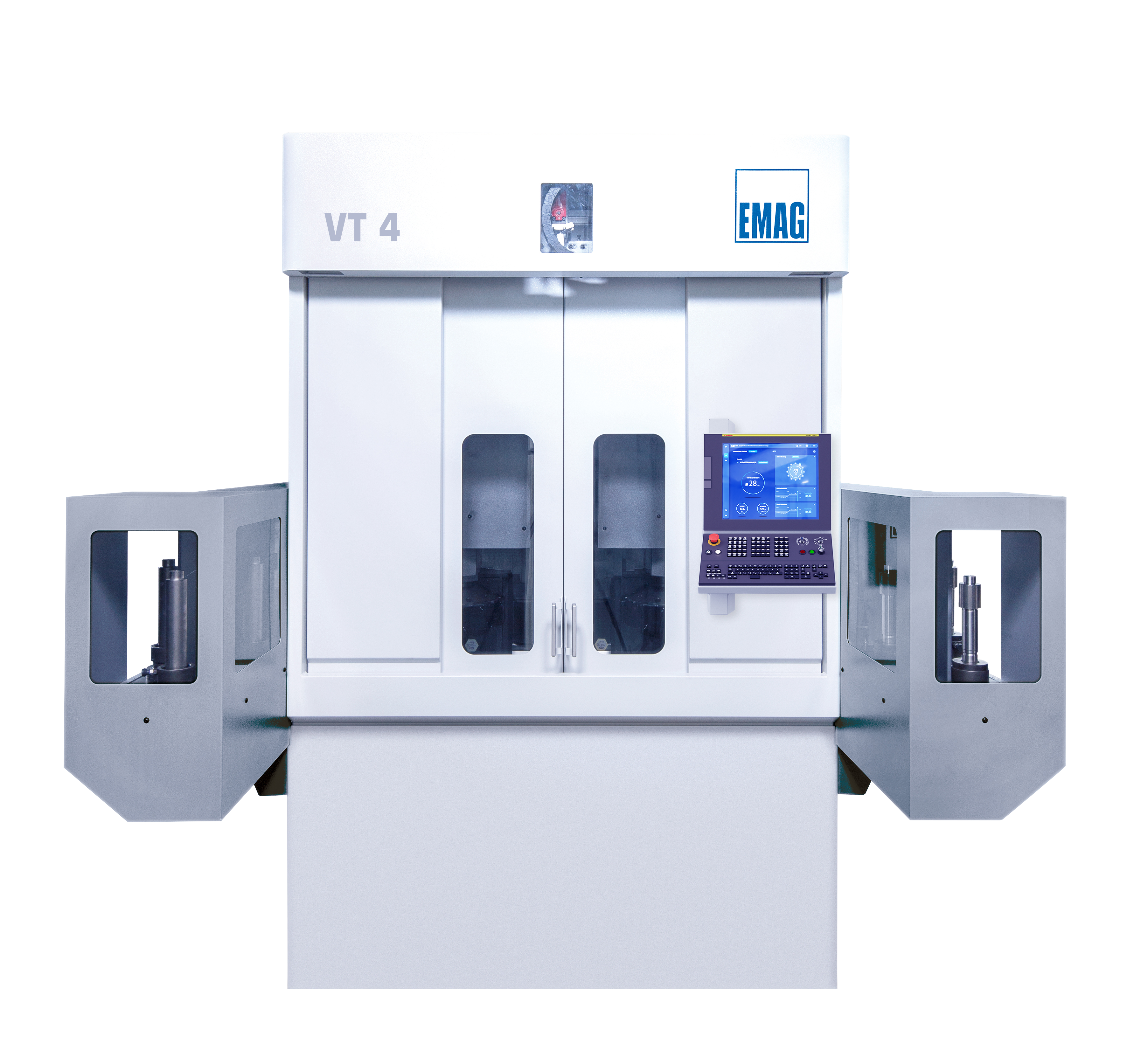

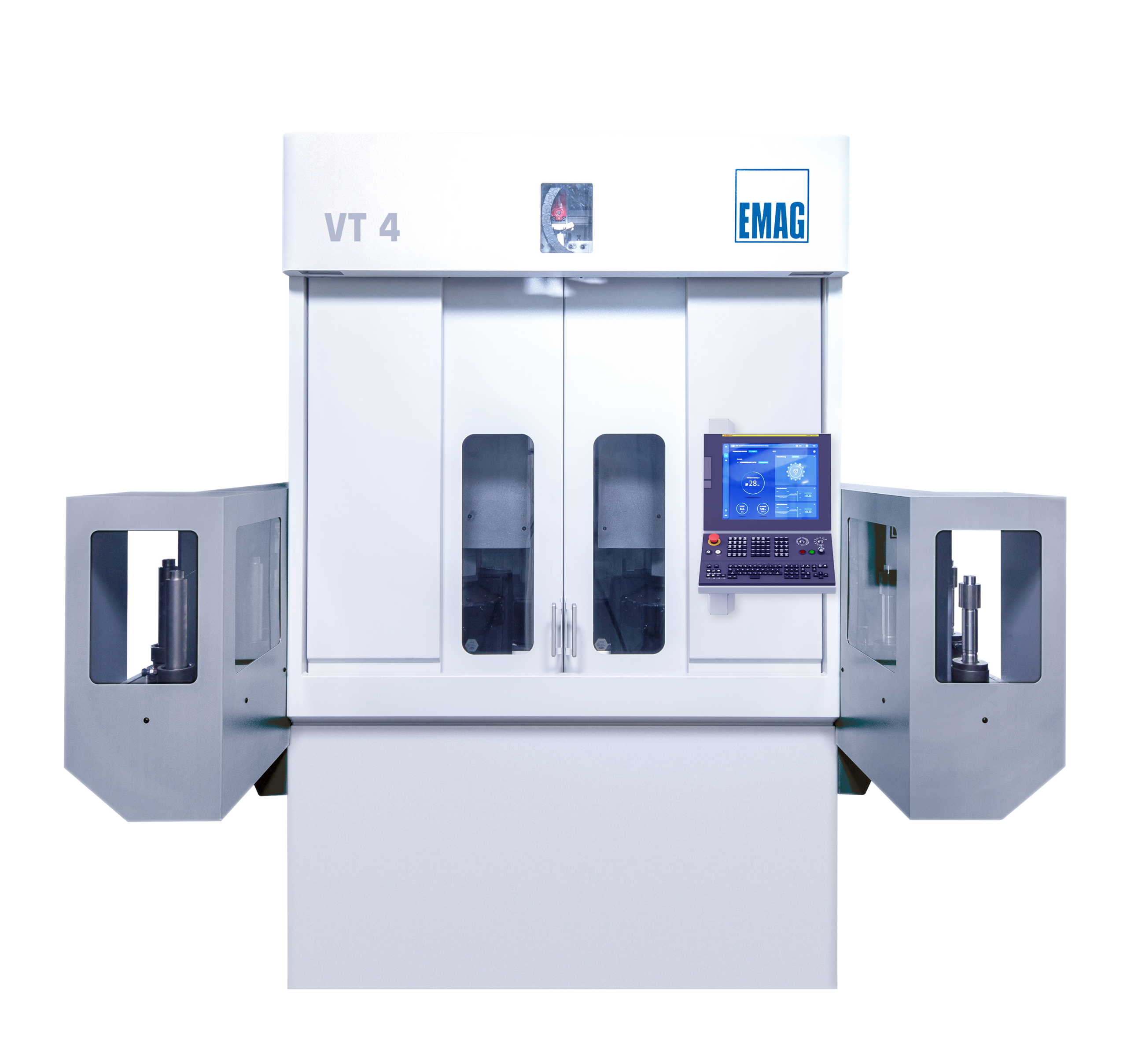

Prepare to accomplish more with a single, high precision turning center from EMAG. Our VT 4 CNC vertical turning centers have integrated automation, simultaneous four-axis machining and IoT-ready capabilities. These heavy-duty, high-performance machines can face and center your components as well as machine the part OD and ID, and provide live tool capability for milling and drilling, eliminating the need for additional individual machines. Fewer machines not only save expensive floor space and capital, but they also limit multiple clamping processes, reducing cycle times and minimizing the chances of errors and damage to parts.
Key Features of the VT 4
- High precision and efficiency: short cycle times and simultaneous four-axis machining for enhanced productivity.
- Integrated automation: automatic loading and unloading with workpiece grippers for reduced idle times.
- Robust process reliability: vertical arrangement ensuring free downward chip flow to prevent build-up.
Advanced Machining Capabilities

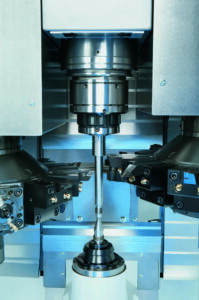

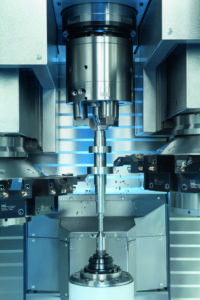

The VT 4 is designed to machine shaft parts up to 24.8” (630 mm) in length with an extended bed version to 3.28’ (1 meter) in length and up to 7.87” (200 mm) in diameter. Two tool turrets with eleven tool posts each are available for machining (one tool post on each turret is occupied by the workpiece gripper). This enables simultaneous four-axis machining of workpieces from two sides.

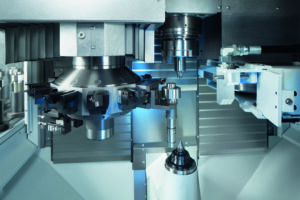

Workpiece grippers transfer the raw parts into the turning center and pick them up again after machining, reducing chip-to-chip times as well as related component costs. Depending on the workpiece, this changeover time lasts only about six seconds. Simultaneously turning from two sides using 4-axis machining makes the actual turning process very fast, too. The vertical arrangement of the component also ensures long-lasting process reliability, since gravity assists chip flow, helping avoid chip build-up in the machine compartment.
Integrated Automation System
Automatic loading and unloading are integral parts of the machine. The workpiece grippers in the two turrets move the raw parts from the workpiece carriers on an incremental chain conveyor into their vertical position in the turning center. Our VT 4 turning centers are also easy to add to a production cell since the automation system can also be used to transfer processed parts to the next station in the cell.
Applications in Shaft Production
The VT 4 is ideal for automotive, aerospace, industrial and gear shaft manufacturing including:
- transmission shafts
- rotor shafts
- pump shafts
- engine shafts
EDNA IoT-Ready Technology
All EMAG VT 4 turning centers come standard as IoT-ready. Using data from our EDNA analytic software, unnecessary downtimes – due to component wear or, in the worst case, due to the failure of a machine – can be reduced or avoided entirely. Productivity improvements of more than 10% are typical with our solution and data analysis on the machines can be started virtually immediately.
Looking to boost efficiency in shaft machining?
The VT 4 turning centers from EMAG set the standard for precision, speed and reliability in vertical turning. With integrated automation, simultaneous four-axis machining and advanced IoT-ready capabilities, these machines are the ultimate solution for cost-effective and high-quality shaft production.
Explore how the VT 4 can transform your manufacturing processes and then send an inquiry with your questions on emag.com.
