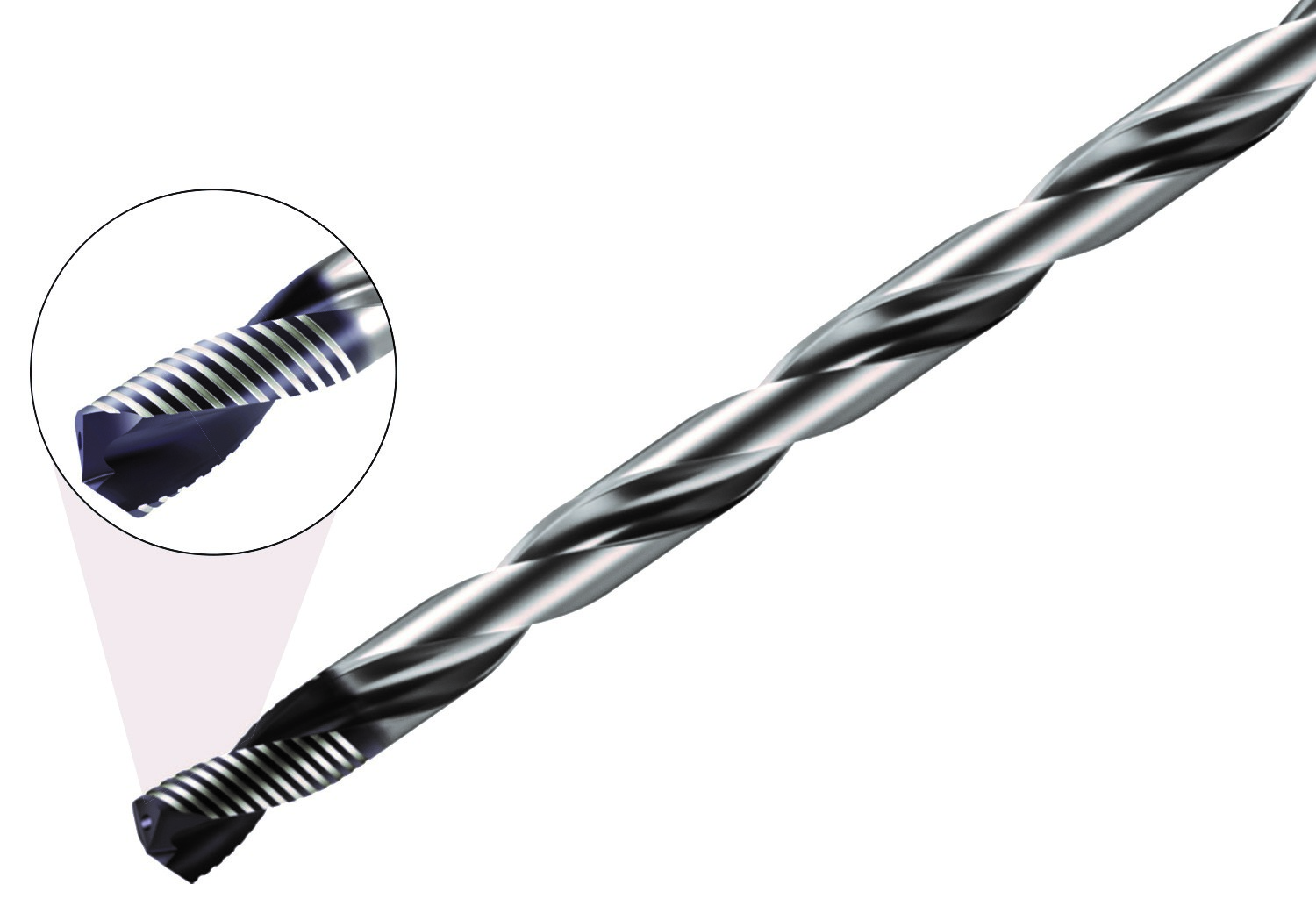

The new Walter Drivox∙tec™ IKON DD170 Supreme solid carbide drill features a unique design with a full radial margin and internal coolant for holemaking in steel and cast iron (ISO P and K material groups). The WJ30EY-grade drill has a Krato·tec® coating to significantly enhance tool life compared to its predecessor—the DC170.
The full radial margin provides 360° support to the cutting edge while in the cut. This design helps the drill to provide maximum process reliability in challenging applications, such as cross-hole drilling and those involving inclined exits, without having to reduce the feed rate. The radial margin support also ensures exceptional smooth surface finishes, hole roundness and vibration-free cutting.
The DD170 Supreme drill features 12 coolant grooves, which have a new profile for enhanced process reliability when machining relatively soft, gummy materials such as AISI 1010 or AISI 1018. The 12 grooves also allow for more possible regrinding operations. The coolant grooves effectively cool the cutting edge, significantly extending tool life even at elevated cutting feeds. The drill can be used with emulsion or oil coolant.
The tool’s variable clearance tip geometry provides the best centering capabilities, eliminating pilot drilling up to 12 × Dc. The diameter range is from 3 to 20 mm, including factional inch sizes. The tool can drill 3 × Dc in according with the DIN 6537 standard, 5 × Dc in accordance with DIN 6537 long, 8 × Dc in accordance with the Walter standard and 12 × Dc in accordance with the Walter Norm standard. The drill has a 140°-point angle.
Areas of use include mold and die making, general mechanical engineering and the automotive, aerospace and energy industries.
The Walter lineup of products consists of three categories of tools. Supreme tools indicate the highest level of technology and performance available. Advance tools indicate products efficiently balanced between price and performance and Perform tools are products that provide an economical solution with focused importance on price ideal for small batch production.
About Walter
Walter, a global leader in the metalworking industry for over 100 years, offers a wide range of precision tools for milling, turning, drilling and threading applications. The company helps customers in the aviation and aerospace industries, automotive, energy, and general metalworking industry improve process reliability and increase productivity. As an innovative partner capable of creating digital process solutions for optimal efficiency, Walter is pioneering Industry 4.0 throughout the machining industry. With Regional Headquarters in Greer, SC, Walter markets its competence brands Walter, Walter Titex, Walter Prototyp and Walter Multiply through a network of channel partners and field engineers across the USA, Canada, Mexico and Brazil.
For more information: www.walter-tools.com/us.
